Description

The first height-adjustable table designed especially for Veterinary Ultrasound.

  • Ergonomic comfort and injury prevention
  • Reduces patient stress
  • Better patient visualization saves time

More comfortable for operator with less risk of repetitive stress injuries

  • With the electric lift you can continuously adjust the table height for perfect presentation of both large and small animals, minimizing physical strain for the operator during long scans.
  • The operator’s arm is supported by an armrest while the assistant comfortably controls the patient. Two adjustable gel pad armrests add to operator comfort.

Patients are more comfortable and less anxious

  • Table lowers for comfortable transfer of patient onto Ultrasound platform.
  • Fitted Stat-Matt® cushion helps assure patient comfort when being restrained against platform.
  • Reduced scanning time means patients can get off the table sooner.

Better patient visualization saves time

  • Tabletop surface helps improve imaging in any patient position – dorsal or lateral – and enhances comfort for the operator and assistant.
  • The Olympic table has two special cutouts in the transparent top that provide access for echocardiography, and the transparent top makes probe positioning easier and more certain. The cutouts have covers that reduce the size of the openings for use on smaller patients.

Convenience Features

  • A heavy-duty swing arm can support your portable ultrasound machine so you can position it at your fingertips to save time.
  • Three probes can be conveniently stored on this same swing arm, and the arm pushes out of the way when you are setting up the patient.
  • 2 drop-in sockets allow for addition of a laptop, instrument tray or an Olympic LED exam light with dimmer switch, perfect for controlling light during procedures.

Vet and Tech can work in complete ergonomic comfort.

The height-adjustable tabletop minimizes lifting of heavy patients.

Special cutouts adjust to size of patient for ideal patient positioning every time.

Optional swing arm holds most laptop-style Ultrasound units. Drop-in LED Exam Light with dimmer provides complete light control.

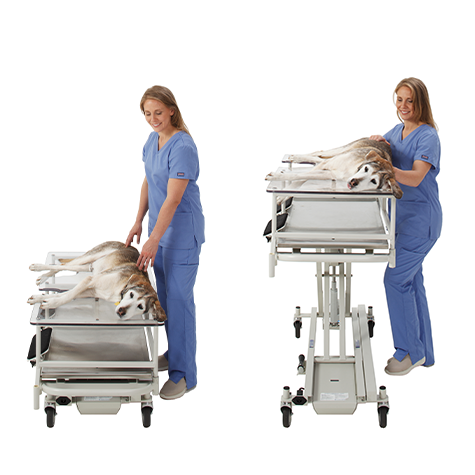

Full-range height adjustment
No more lifting heavy patients to table height. Ideal presentation for large and small patients and operators. Height range – 22” to 48”

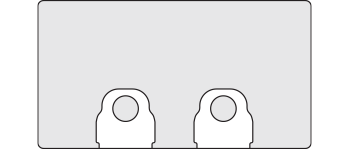

Large tabletop surface with cutouts
Large 26” x 48” clear Lexan® surface. Unlike acrylic or plexiglass, which is prone to cracking and to clouding when exposed to cleaning agents, Lexan is a long-life solution that provides a dependable, easy-to-clean surface.

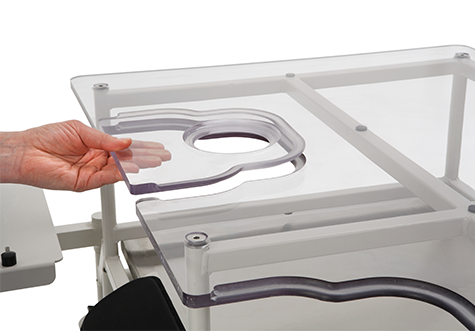

Parasternal long-axis and short-axis cutouts
Openings on the left and right side of the Lexan surface have been optimized to facilitate scanning along the parasternal long-axis and short-axis. Larger patients will fit comfortably over the bell-shaped cutouts. Filler blocks reduce the size of the cutout to accommodate smaller patients.

Quickly Adapts to Abdominal Ultrasound
V-positioner can be placed over Lexan top, with or without the cutout inserts in place.

Supply Shelf
Handy shelf under the top surface for supplies, which are easy to see and reach.

Articulating armrests
Two pivoting gel pad armrests. Angle of each arm rest adjusts to user. Removable.

Comfort Mat
To avoid pressure points during long lateral scans, a table-size soft mat is furnished which has cutouts matching those in the tabletop. Wipes clean.

Rolls easily
4 locking casters permit this table to be moved when not in use or for room cleaning. It can also be fitted into rooms with different layouts and smaller spaces.

Long Life Battery
Battery provides an impressive 125 up and down cycles on a single charge, typically enough power for several weeks of use between charging. Long life battery provides up to 5 years of service before replacement.

Accessories

  • Ultrasound Swing Arm with probe holders
  • Instrument Tray
  • Laptop tray
  • LED Exam light

Specifications

  • Tabletop dimensions – 26” x 48”
  • Overall dimensions – 26” x 53” (to end of handles)
  • Patient lift capacity – 250 pounds
  • Height range – 22” to 48”
  • Casters – Large 5”, full swivel, locking
  • Net weight – 145 pounds
  • Electrical – Battery charges on 120V/60Hz
  • Sockets – 2 accessory sockets
Ultrasound_Features_Tab_FullHghtAdjst2_250x250_72ppi
Ultrasound_Features_Tab_LrgTableTop_250x250_72ppi

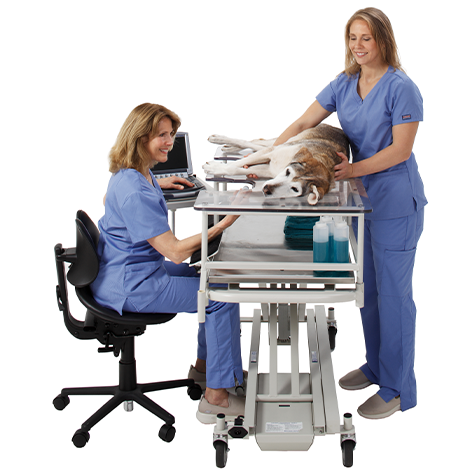

The Sonographer can sit in ergonomic comfort with everything she needs at her fingertips. Pivoting arm rests help prevent repetative stress injuries to shoulders, elbows and wrists.

Ultrasound Accessories

  • 50791  Ultrasound Swing Arm with 3 probe holders. Large platform securely holds any laptop-style Ultrasound unit up to 16” x 17”. 3 deep-pocket probe holders, ranging from ½” diameter to 1” diameter to securely hold probes during procedure. Arm can be positioned to left or right of table. Maximum weight capacity 25#
  • 5098  Swiveling laptop Tray. Your laptop is securely held on a special swing-arm so it’s just where you want it. Can be quickly moved to another drop-in socket. 11” x 14” capacity.
  • 50987  LED Exam Light. Daylight color LED. Adjustable brightness and focus. 70,000 LUX output. Color temperature 5,700k. Long flexible gooseneck. Connects to electrical outlets on the table.

Note:  Accessories fit into drop-in sockets, no tools required. Table can hold 2 accessories at same time.

Ultrasound swing arm includes 3 Lexan probe holders designed to securely hold all your ultrasound probes.

LED Exam Light drops into sockets, providing a dimmable light source at your fingertips.

Ordering Options

Base Model
  • 50790  OIympic Ultrasound Table™. Height-adjustable table with Lexan® tabletop. Removable cutouts and filler blocks for positioning patients of all sizes. Includes 2 pivoting arm rests with gel pads, table-size soft mat and 2 sockets for optional Swing Arm, Laptop Tray or LED Exam light. 2 footswitches. 5” hospital grade casters. 250# weight capacity.
Accessories
  • 50791  Ultrasound Swing Arm with 3 probe holders. Large platform securely holds any laptop-style Ultrasound unit up to 16” x 17”. 3 deep-pocket probe holders, ranging from ½” diameter to 1” diameter to securely hold probes during procedure. Arm can be positioned to left or right of table. Maximum weight capacity 25#
  • 50988  Swiveling laptop Tray. Your laptop is securely held on a special swing-arm so it’s just where you want it. Can be quickly moved to another drop-in socket. 11” x 14” capacity.
  • 50987  LED Exam Light. Daylight color LED. Adjustable brightness and focus. 70,000 LUX output. Color temperature 5,700k. Long flexible gooseneck. Connects to electrical outlets on the table.

Note:  Accessories fit into drop-in sockets, no tools required. Table can hold 2 accessories at same time.

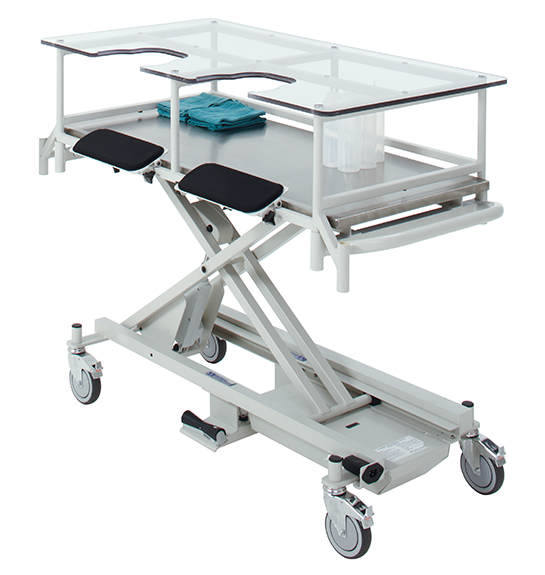

Base model. Includes table-size soft mat (not pictured).
